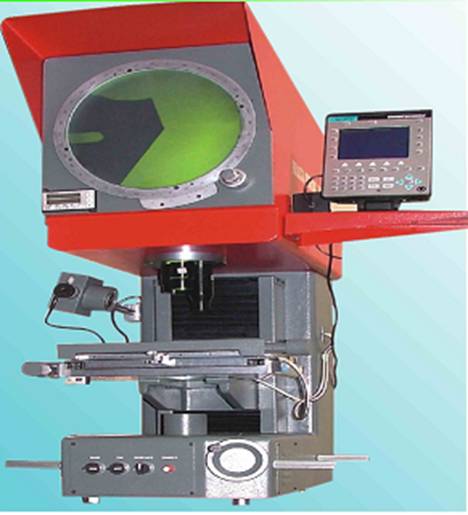

VERTICAL PROFILE PROJECTOR

SPECIFICATIONS	JV-300	JV-400 / 500	JV-600
SCREEN	300MM	400MM/ 500mm	600MM
Standard	Opaque glass screen with 90º cross line fitted on rotary ring operated by knob
Optional	Electronic Protractor switchable degree / decimal L. C. 0.01 degree/1 minute
Optics Standard	10x , 20x	10x, 20,	10x, 20x
Optional	20x, 50x, 100x	50x, 100x	50x, 100x
Mount	Screw Mount	Turret Mount with click stop
Work stage	160 x 160mm	200 x 200mm	200 x 200mm
Measuring range	50 x 50mm	100 x 75mm	75 x 75mm
Linear Measurement	0-50mm, Micrometer head with zero adjustment, LC-0.001mm
Focusing	100mm	100mm	100mm
Maximum Accuracy
Contour	0.05%	0.05%	0.05%
Surface	0.75%	0.75%	0.75%

OPTIONAL HARDWARE

	OPTIONAL SOFTWARE
Workstage for DRO : System travel 100 x 100mm	Dia View : DRO system with L. C. 1 Micron/5Micron
Workstage for DRO : System travel 100 x 100mm	DP 300 Microprocessor based geometrical read out system
150 x 150mm / 200 x 100mm / 200 x 150mm / 200 x 200mm	PC based geometrical readout system, mouse
Opto Edge sensor for accurate measurement	Drive with on screen graphical representation of part
Profile charts, Rotary table, V-Block, Centre holding device	Simple CAD interface
