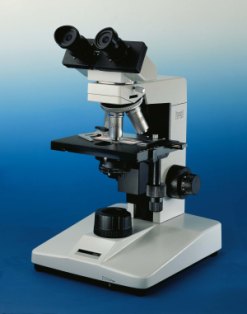

H600 SERIES mICROSCOPE

H600 WILO-PRAX

H600 WILO-PRAX MICROSCOPE

Description:
Stand:	Quadruple revolving nosepiece, reversed
Method of contrast:	Brightfield
Tube:	Binocular, 30°
Eyepieces:	Widefield 10x/18
Objectives:	Achro 4/0,10; Achro 10/0,25; Achro 40/0,65; Achro 100/1,25 (Oil)
Magnification:	40 - 1000 times
Object stage:	Mechanical stage 160x130mm
Condenser:	NA 0,9
Illumination:	12V / 30W halogen, continuous regulation
Accessories:	2 Eyeguards, filterslider II, conversion filter, filter VG 9, spare lamp, 2 spare fuses, immersion oil, instruction for use, dust cover, mains cable
Order number:	008.0372.0

H600 WILO-PRAX-PLAN ACHROMATIC

for brightfield with planachromatic objectives and enlarged field of view (F.O.V. 20)

Description:
Stand:	Quadruple revolving nosepiece, reversed
Method of contrast:	Brightfield
Tube:	Binocular, 30°
Eyepieces:	Widefield 10x/20
Objectives:	PLAN 4/0,10; PLAN 10/0,25; PLAN 40/0,65; PLAN 100/1,25 (Oil)
Magnification:	40 - 1000 times
Object stage:	Mechanical stage 160x130mm
Condenser:	NA 0,9
Illumination:	12V / 30W halogen, continuous regulation
Accessories:	2 Eyeguards, filterslider II, conversion filter, filter VG 9, spare lamp, 2 spare fuses, immersion oil, instruction for use, dust cover, mains cable,
Order number:	008.0390.0

H600 WILOZYTE ACHROMATIC PHASE CONTRAST

H600 WILO-PRAX MICROSCOPE

for brightfield, phase contrast and darkfield with large field of view (F.O.V. 20)

Description:
Stand:	Quadruple revolving nosepiece
Method of contrast:	Brightfield, darkfield and phase contrast
Tube:	Binocular, 30°
Eyepieces:	Widefield 10x/20
Objectives:	Achro 10/0,25, Plan Ph 20/0,40, Plan Ph 40/0,65, Achro 100/1,25 (Oil)
Magnification:	100 - 1000 times
Object stage:	Mechanical stage 160x130mm
Condenser:	Combination condenser NA 1,2
Illumination:	12V / 30W halogen, continuous regulation
Accessories:	2 Eyeguards, filterslider II, conversion filter and filter VG 9, 2 centering keys, spare lamp, 2 spare fuses, mains cable, instruction for use, dust cover
Order number:	008.0379.0

H600 WILOZYTE PLAN PHASE CONTRAST MICROSCOPE

H600 MICROSCOPE .

for brightfield, phase contrast and darkfield with planachromatic objectives, with large field

Description:
Stand:	Quadruple revolving nosepiece
Method of contrast:	Brightfield, darkfield and phase contrast
Tube:	Binocular, 30°
Eyepieces:	Widefield 10x/20
Objectives:	Plan 10/0,25, Plan Ph 20/0,40, Plan Ph 40/0,65, Plan 100/1,25 (Oil)
Magnification:	100 - 1000 times
Object stage:	Mechanical stage 160x130mm
Condenser:	Combination condenser NA 1,2
Illumination:	12V / 30W halogen, continuous regulation
Accessories:	2 Eyeguards, filterslider II, conversion filter and filter VG 9, 2 centering keys, spare lamp, 2 spare fuses, mains cable, instruction for use, dust cover
Order number:	008.0380.0

H600 WILOZYTE PLAN ICS (INFINITY CORRECTED OBJECTIVES)

for brightfield, phase contrast and darkfield with infinity corrected objectives (planachromatic)

Description:
Stand:	Quadruple revolving nosepiece
Method of contrast:	Brightfield and phase contrast
Tube:	Binocular, 30°
Eyepieces:	Widefield 10x/20
Objectives:	ICS PL 10/0,25, ICS PL Ph 20/0,40, ICS PL Ph 40/0,65, ICS PL 100/1,25 (Oil)
Magnification:	100 - 1000 times
Object stage:	Mechanical stage 160x130mm
Condenser:	Combination condenser NA 1,2
Illumination:	12V / 30W halogen, continuous regulation
Accessories:	2 Eyeguards, filterslider II, conversion filter and filter VG 9, 2 centering keys, spare lamp, 2 spare fuses, mains cable, instruction for use, dust cover
Order number:	008.0381.0

H600 BS

H600 MICROSCOPE for brightfield, darkfield and phase contrast, main field of the application: sewage purification plants

Description:
Stand:	Quadruple revolving nosepiece
Method of contrast:	Brightfield, phase contrast and darkfield
Tube:	Binocular, 30°
Eyepieces:	Widefield 10x/18
Objectives:	Achro 10/0,25, Plan Ph 40/0,65, Plan Ph 100/1,25 (Oil)
Magnification:	100 - 1000 times
Object stage:	Mechanical stage 160x130mm
Condenser:	Large combination condenser NA 1,2
Illumination:	12V / 30W halogen, continuous regulation
Accessories:	2 Eyeguards, filterslider II, conversion filter and filter VG 9, 2 centering keys, spare lamp, 2 spare fuses, immersion oil, instruction for use, dust cover, mains cable
Order number:	008.0371.0

H600 PHASE CONTRAST PLAN MICROSCOPE

H600 MICROSCOPE for brightfield and phase contrast with planachromatic phase contrast objectives and large field of view (F.O.V. 20)

Description:
Stand:	Quadruple revolving nosepiece
Method of contrast:	Brightfield and phase contrast
Tube:	Binocular, 30°
Eyepieces:	Widefield 10x/20
Objectives:	Plan Ph 10/0,25, Plan Ph 40/0,65, Plan 100/1,25 (Oil)
Magnification:	100 - 1000 times
Object stage:	Mechanical stage 160x130mm
Condenser:	Combination condenser NA 1,25
Illumination:	12V / 30W halogen, continuous regulation
Accessories:	2 Eyeguards, filterslider II, conversion filter and filter VG 9, 2 centering keys, spare lamp, 2 spare fuses, mains cable, dust cover
Order number:	008.0353.0

H600 WILO BRAU MICROSCOPE

for brightfield, phase contrast and darkfield, main field of the application: breweries

Description:
Stand:	Quadruple revolving nosepiece
Method of contrast:	Brightfield, darkfield and phase contrast
Tube:	Binocular, 30°
Eyepieces:	Widefield 10x/18
Objectives:	Achro 10/0,25; Plan Ph 40/0,65, A 63/0,85
Magnification:	100 - 630 times
Object stage:	Mechanical stage 160x130mm
Condenser:	Combination condenser NA 1,2, slot in diaphragm DF 63x for darkfield
Illumination:	12V / 30W halogen, continuous regulation
Accessories:	2 Eyeguards, filterslider II, conversion filter and filter VG 9, 2 centering keys, spare lamp, 2 spare fuses, mains cable, instruction for use, dust cover
Order number:	008.0370.0
