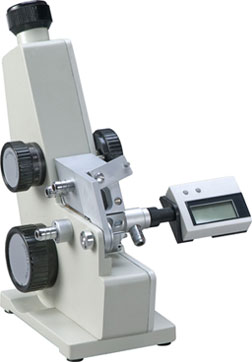

ABBE REFRACTOMETER

The incorporation of precision glass circle, scale plate with minutely finished rotating mechanism and tropic proof high sensitive optical system enable the precise reading of test result without the aid of vernier

Abbe Refractometer

Abbe Refractometer capable of measuring the refractive index of is ideally suited where a wide refractive index measurement range is required.

Special Features:

Built in light provides accurate analysis of industrial process controls
Easy to read index scale on translucent glass sharply visible through transmitted light.
Quick and convenient determination of refractive index and dispersions till the estimated forth decimal.
Large dull knobs permits speedy convenient setting of dividing line.
Horizontal loading of prism housing prevents flowing down of test liquids.
Thermometer has a range 0-60°C and can be adjusted to convenient reading angle.

Highly precision Abbe Refractometer is a handy measuring instrument for determination of refractive and dispersion properties of solid and light substances.

Applications: It is recommended for

Determination of mixing ratios where each component has different refractive indices;
Determination of fat contents of solutions, determining concentration of liquids
Determining concentration of volatile substances

For testing the purity of petroleum and jelly products.

Technical Data :
Refractive Index Range :	nD 1.3000-1.7000
R.I. Mini Scale :	nD 0.001
Brix Percentage Range :	0-95%
Brix Min, Scale :	0.5%
Accuracy of R.I. & Brix :	+0.0002 +0.1%
Applicable Temperature :	0 to 60°C
Light Source :	Input 220-240V
Display Temperature Resolution :
Measurement Temperature Range :
Dimensions :
Weight :

Supplied as above with standard glass test plate, small bottle of contact liquid thermometer in metal jacket, Digital Thermal Indication, Zero adjustment knob, cleaning brush and dust cover

Digital Thermometer suitable for Abbe Refractometer

Abbe & Hand Refractometers

Abbe Refractometer

ABBE REFRACTOMETER
provides quick, convenient and accurate means of determination of refractive indices till the estimated fourth decimal and also dispersion of liquids and solids. It is widely used for purity studies, quantitative analysis, determination of soluble sugar and fats in sugar solutions, confectionery products, pharmaceuticals products, Chemical & prepared slides, glass and synthetic crystals etc.

Technical Data :
Measuring Range :	nD 1.3000-1.7000
Measuring Accuracy (By Direct Reading) :	+0.001
Measuring Accuracy (By Estimation) :	+0.0001
Sugar Percentage in Solution :	0-95% (+5%)
Dispersion :	nD+ 0.0005

Digital Thermometer suitable for Abbe Refractometer
Complete as above with standard glass test plate, 4ml. Monoborm naphthalene (Contact liquid), Digital thermal indication, Thermometer in metal jaket, Zero adjustment knob, brush and dust cover etc in a sturdy cabinet.

HAND ABBE REFRACTOMETER

Hand Refractometer

Hand Refractometer also available in three ranges :

MHR - 05A :	0 to 32%
MHR - 05B :	28 to 62%
MHR - 05C :	58 to 90%

All the above models have an accuracy of +2 and are supplied with a screw driver for scale driver for scale adjustment in a carrying case.
